Pixelhue EP4T / EP4R
-
Contact us for a quote
Pixelhue EP4T transmitter and EP4R receiver: 4x HDMI 2.0 4K60 over 4x 10G fiber, lossless 8/10-bit. Single-mode or multi-mode. Request a quote from Pixel Pitche
Fast delivery from Sweden
Shipped next business day
No Import Duties
Very few exceptions
High quality with EU warranty
For the best price on the market
Fast Support
Article Number:
N-78-513-08
Supplier:
Pixelhue

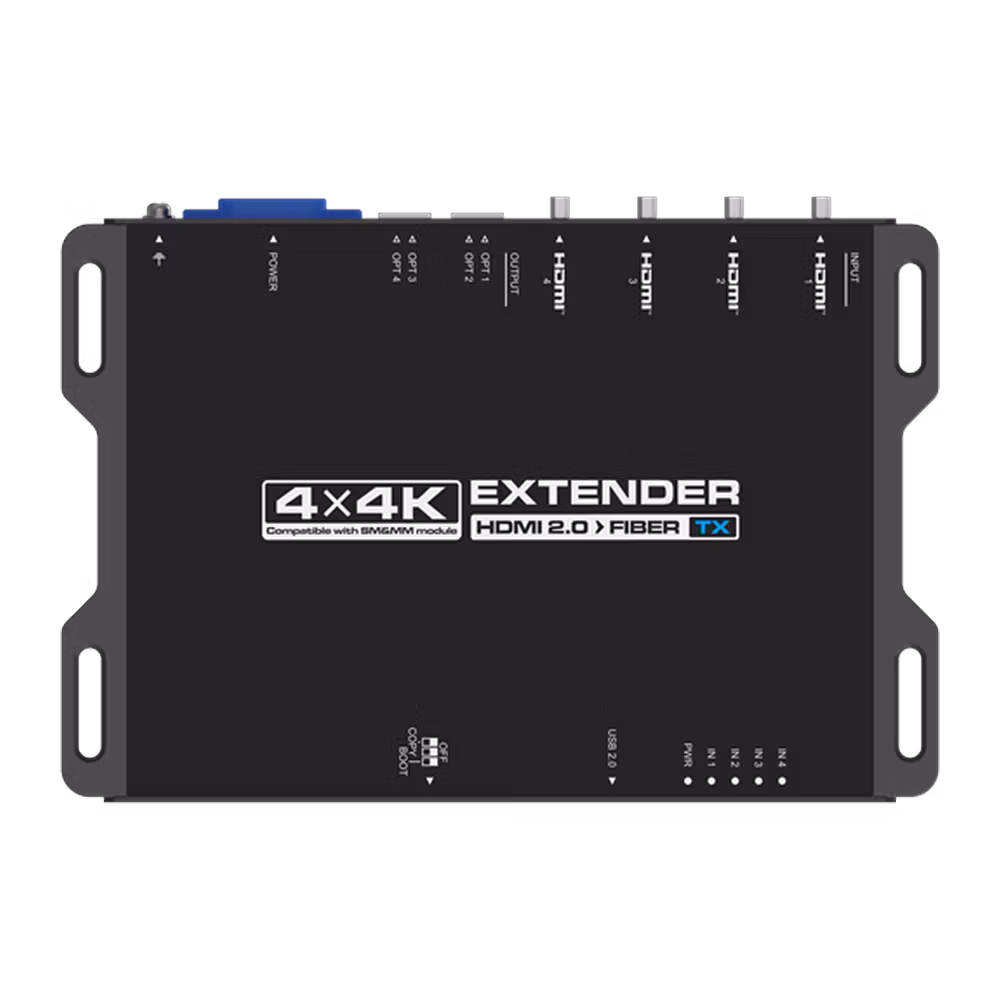

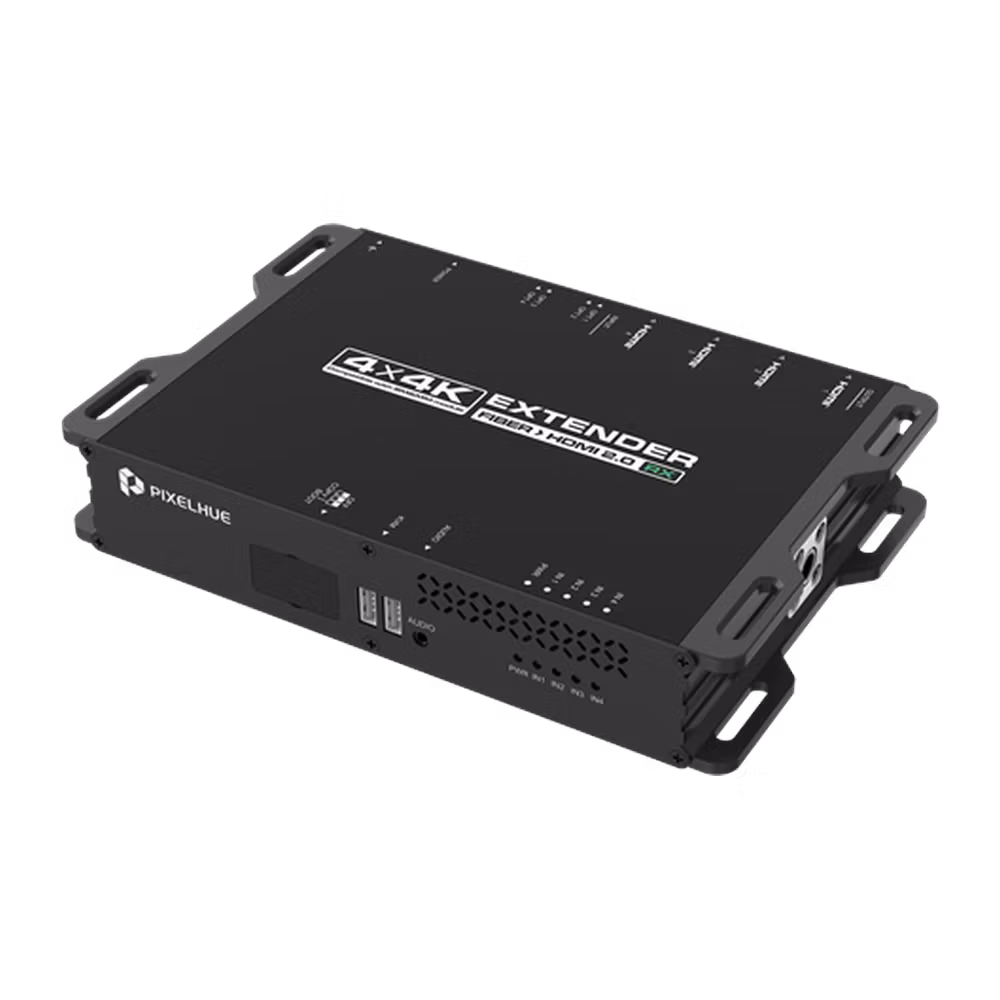

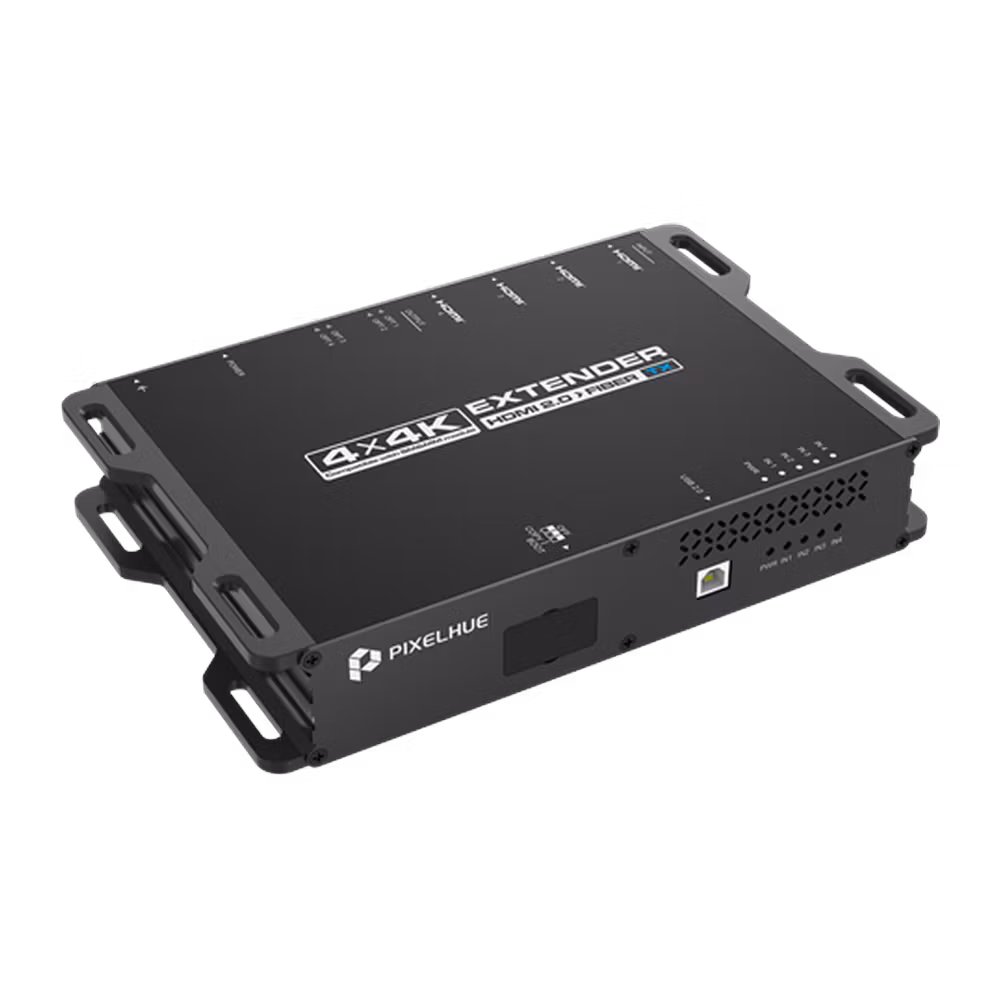

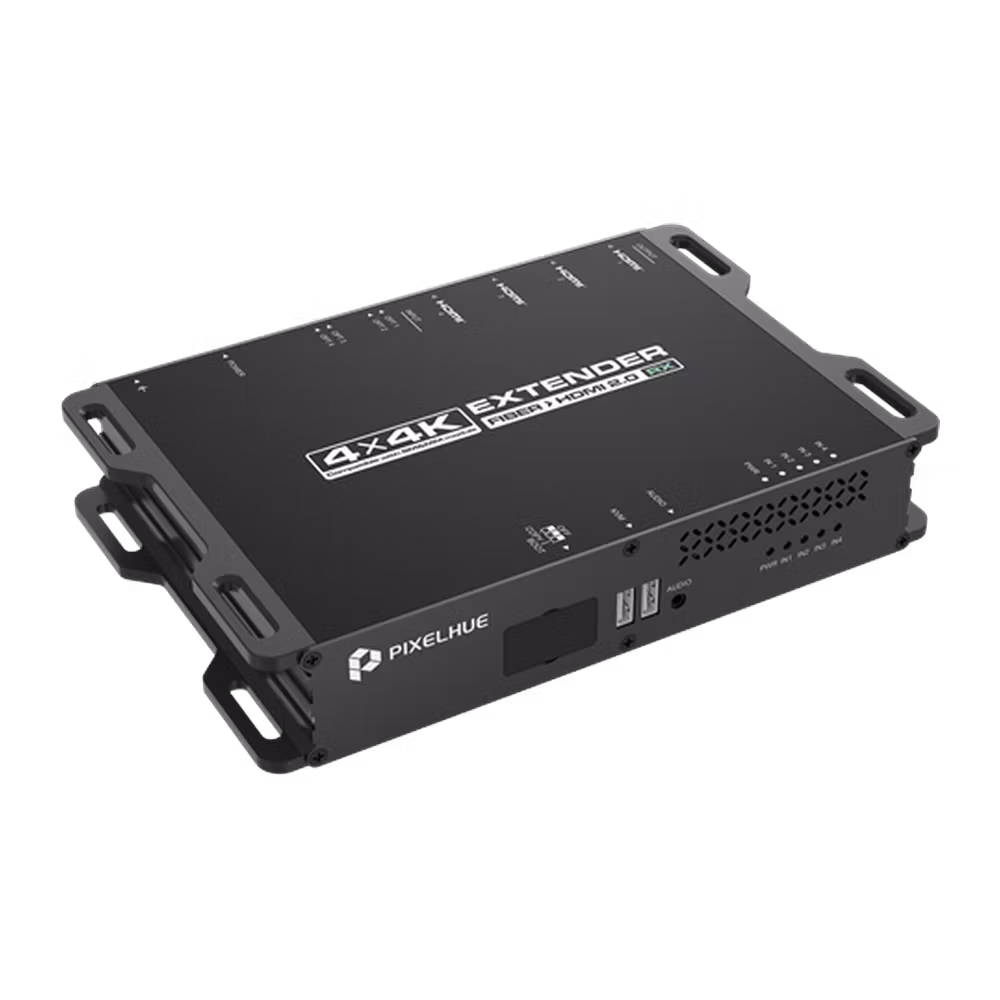

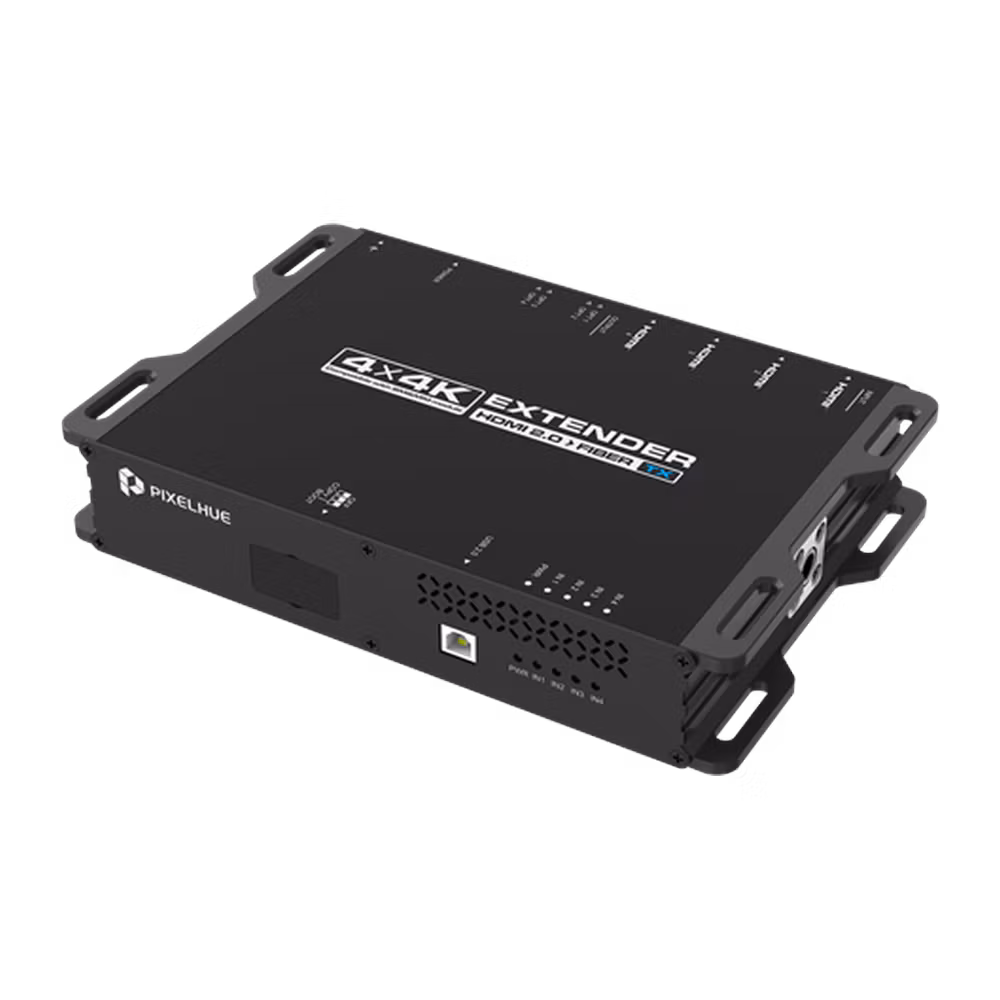

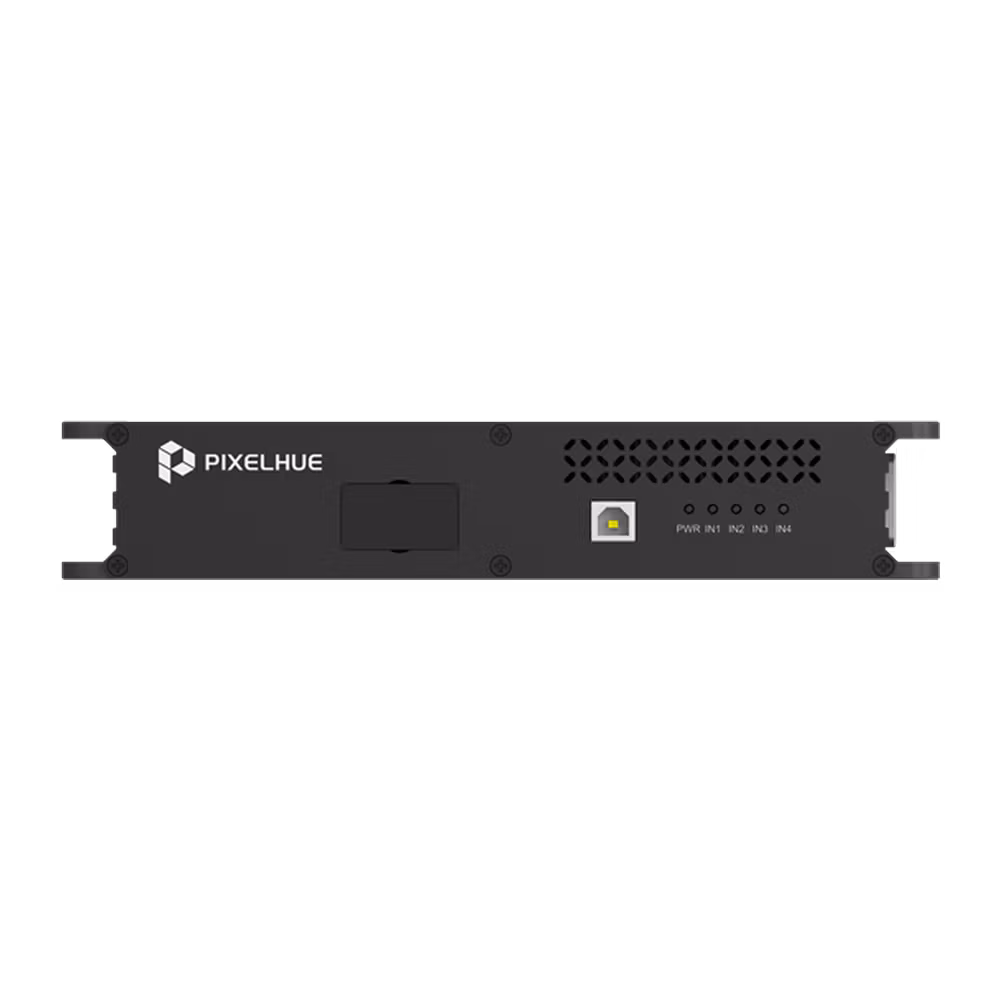

The Pixelhue EP4T/R is a 4-channel fiber optic extender: the EP4T transmitter takes four HDMI 2.0 sources and sends them over four 10G fibers, and the EP4R receiver turns them back into four HDMI 2.0 outputs at up to 4K@60Hz each. Lossless 8-bit/10-bit compression keeps the picture identical at the far end.
Key Features
- 4× HDMI 2.0 in (EP4T) / 4× HDMI 2.0 out (EP4R)
- 4× 10G optical ports
- Up to 3840×2160@60Hz per channel when used as a TX/RX pair
- 8-bit / 10-bit lossless compression
- HDCP 2.2 compliant (backwards compatible with HDCP 1.4)
- Max width or height up to 8192 pixels per connector
- Compact, plug-and-play design
Models
- EP4T-S / EP4R-S: transmitter / receiver for single-mode fiber
- EP4T-M / EP4R-M: transmitter / receiver for multi-mode fiber
A complete link needs one EP4T and one EP4R of the same fiber type.
Specifications

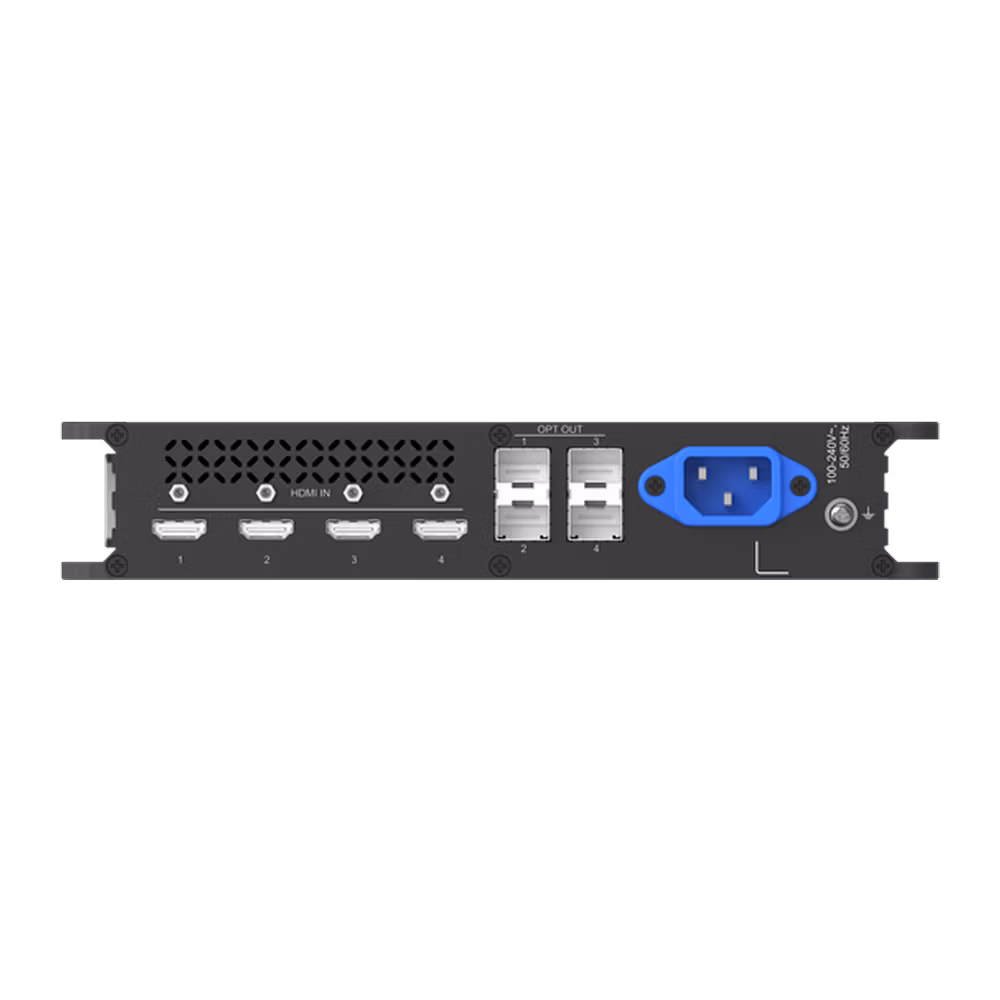

| EP4T inputs | 4× HDMI 2.0, up to 3840×2160@60Hz |
| EP4T outputs | 4× 10G OPT |

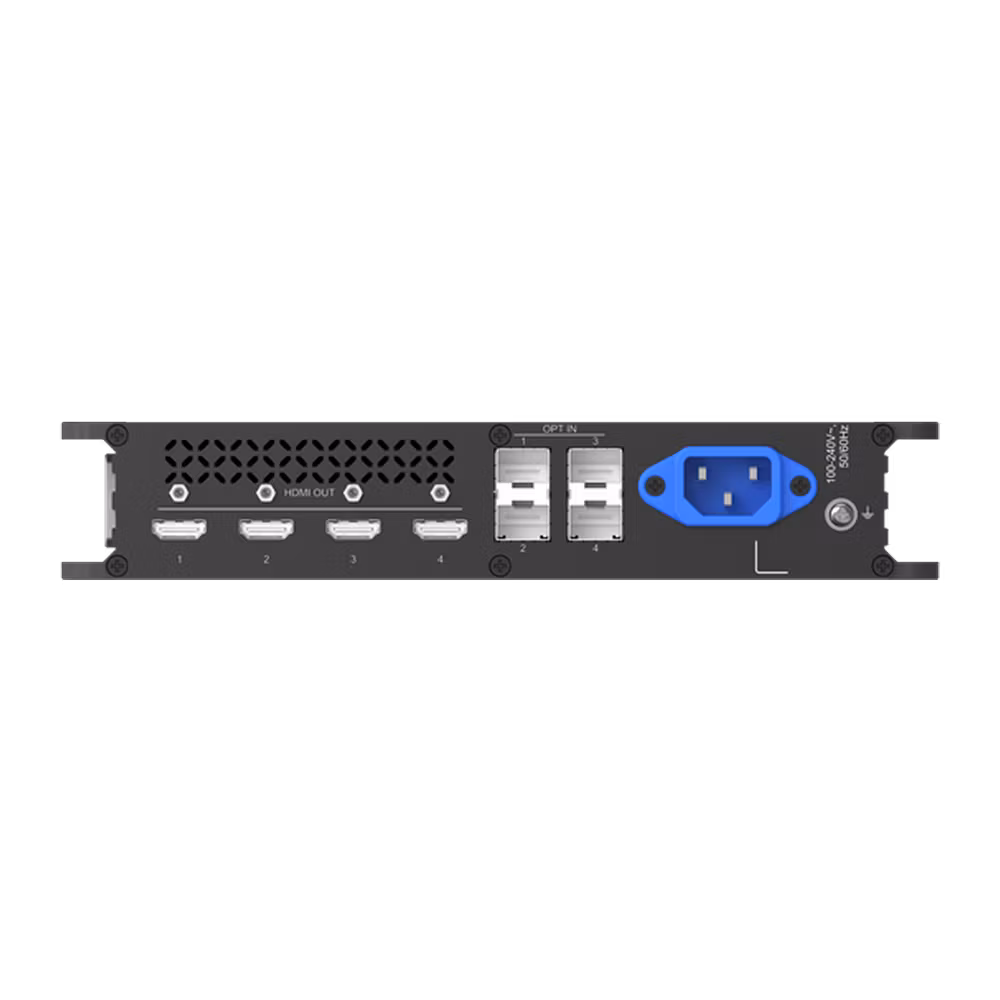

| EP4R inputs | 4× 10G OPT |
| EP4R outputs | 4× HDMI 2.0 |
| Per-port resolution | 3840×2160@60Hz paired; 3840×2160@30Hz standalone |
Applications
Live events, rental and staging, broadcast, conference rooms and control rooms. Need etherCON/opticalCON/powerCON connectors, 12-bit HDR and KVM? See the EP4T/R Pro. For a single channel, see the EP2.
Request a Quote
The EP4T/R is sold on quote. Contact Pixel Pitchers for price and delivery time. We ship from Sweden by UPS Express, with no EU import duties.
