Pixelhue EP2
-
Contact us for a quote
Pixelhue EP2 fiber extender for 4K60 HDMI 2.0 and DisplayPort 1.2 over 10G fiber, lossless 8/10-bit. Single-mode or multi-mode. Request a quote from Pixel Pitch
Fast delivery from Sweden
Shipped next business day
No Import Duties
Very few exceptions
High quality with EU warranty
For the best price on the market
Fast Support
Article Number:
N-78-513-01
Supplier:
Pixelhue

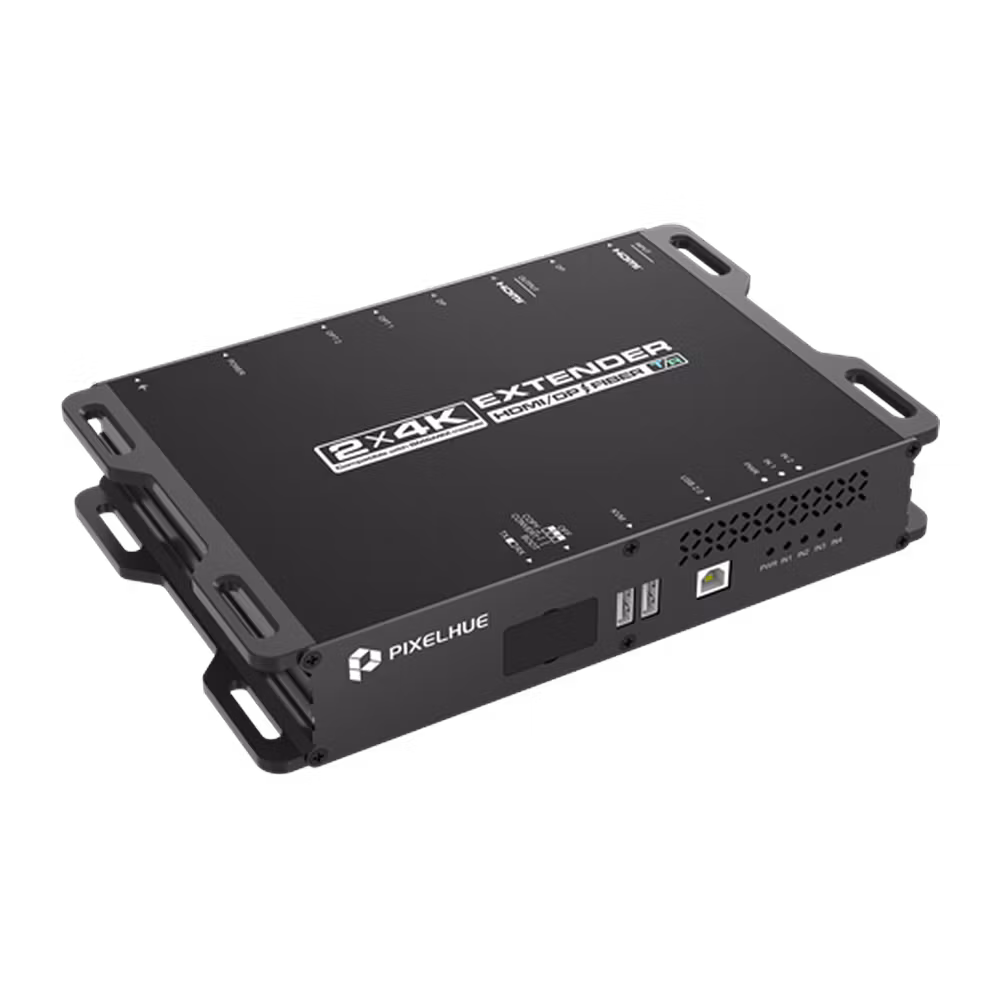

The Pixelhue EP2 is a compact fiber optic extender that carries one 4K@60Hz HDMI 2.0 or DisplayPort 1.2 signal over optical fiber, with lossless 8-bit/10-bit compression. It is a simple, plug-and-play way to get a 4K source to a distant LED processor, projector or display, with no quality loss over the distance.
Key Features
- 4K×2K@60Hz video over fiber
- 8-bit / 10-bit lossless compression
- HDMI 2.0 and DisplayPort 1.2 inputs and outputs on the same unit
- 2× 10G optical ports
- HDCP 2.2 compliant (backwards compatible with HDCP 1.4)
- Max width or height up to 8192 pixels per connector
- Compact, plug-and-play design
Versions
- EP2-S: for single-mode fiber
- EP2-M: for multi-mode fiber
Use one EP2 at each end of the fiber link, as transmitter and receiver.
Specifications

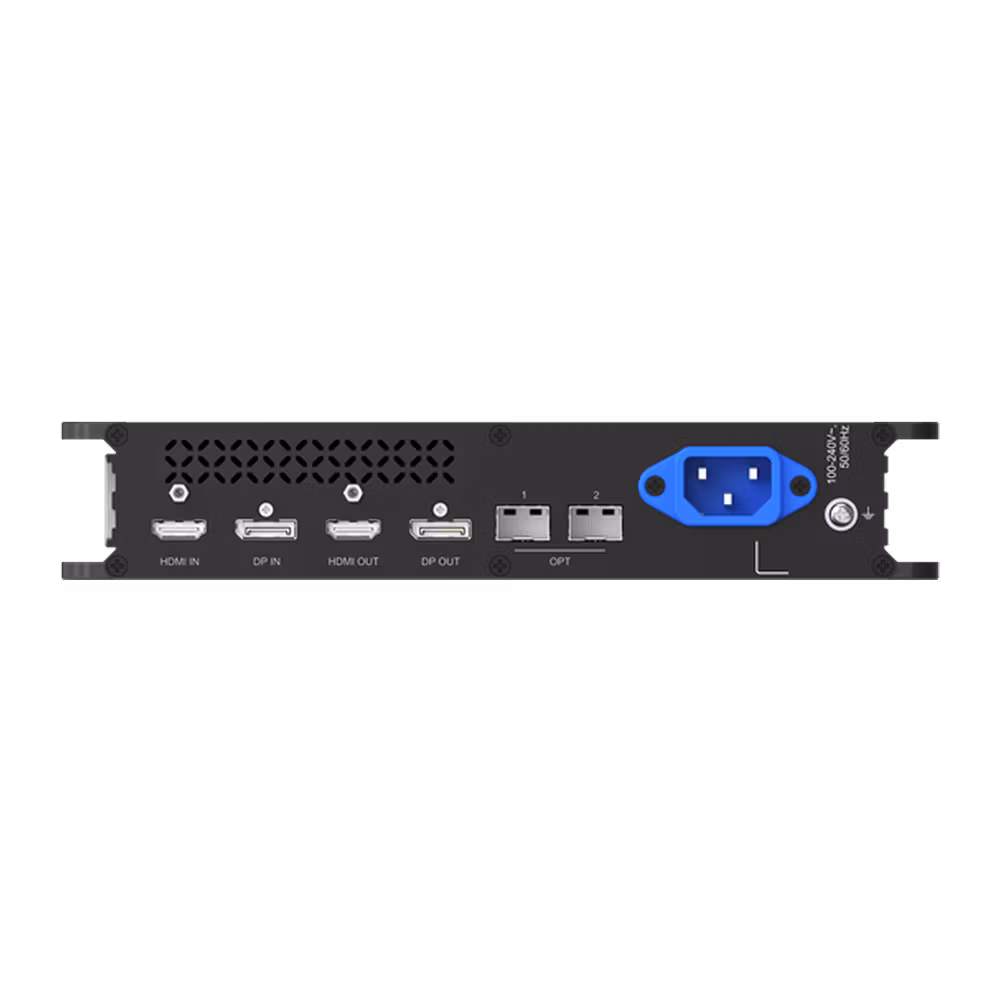

| HDMI input | 1× HDMI 2.0, up to 3840×2160@60Hz |
| HDMI output | 1× HDMI 2.0 |
| DP input | 1× DP 1.2, up to 3840×2160@60Hz (HDCP 2.3/2.2/1.4) |
| DP output | 1× DP 1.2 |
| Optical | 2× 10G OPT; 3840×2160@60Hz per port when used as a TX/RX pair |
Applications
Live events, rental and staging, conference rooms, control rooms and monitoring centers. Need more channels? See the 4-channel EP4T/R and EP4T/R Pro, or the single-channel HDMI2.0-F.
Request a Quote
The EP2 is sold on quote. Contact Pixel Pitchers for price and delivery time. We ship from Sweden by UPS Express, with no EU import duties.
