Pixelhue EP4T Pro / EP4R Pro

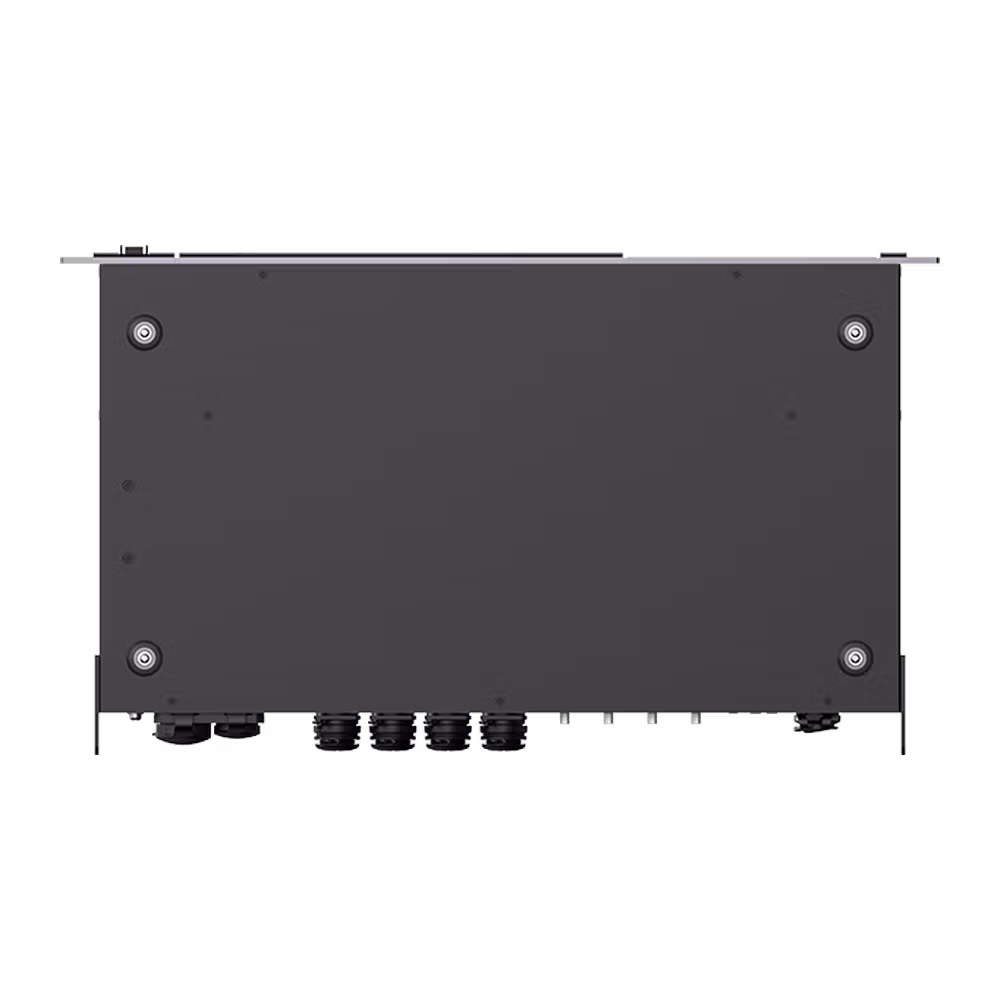

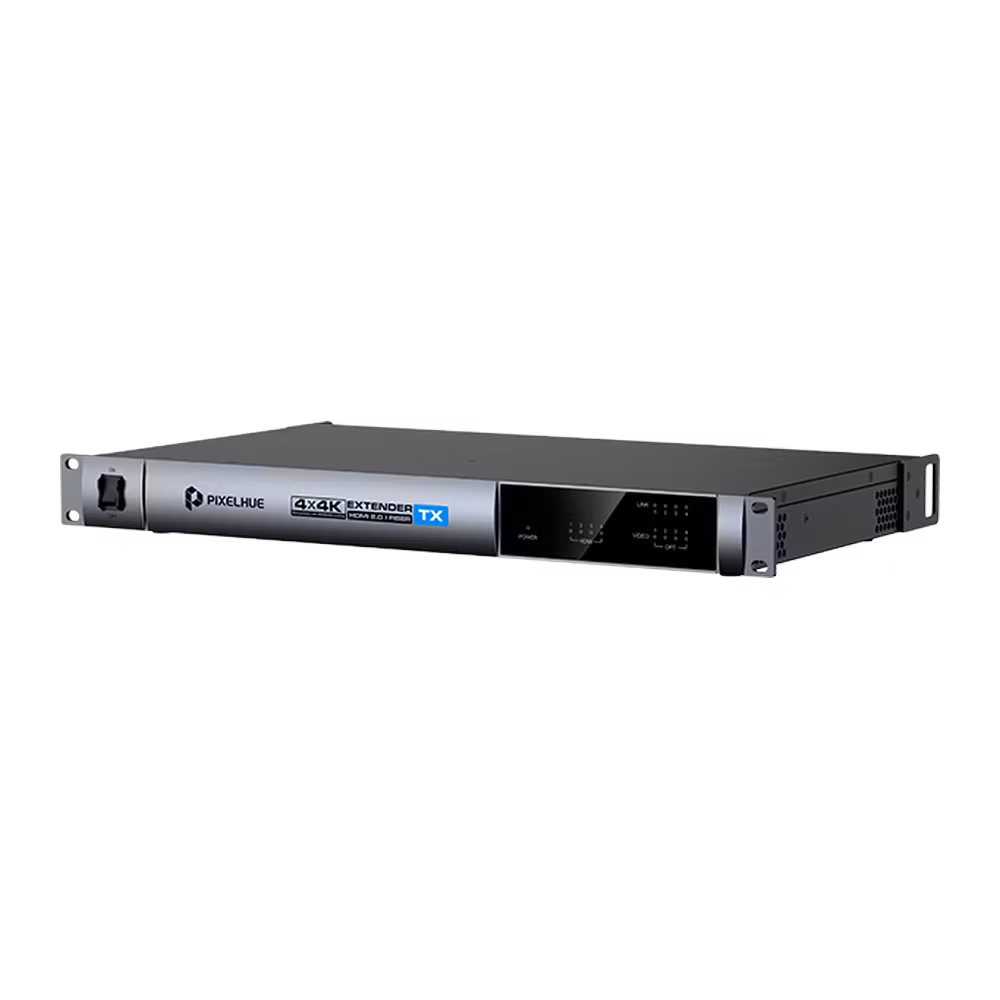

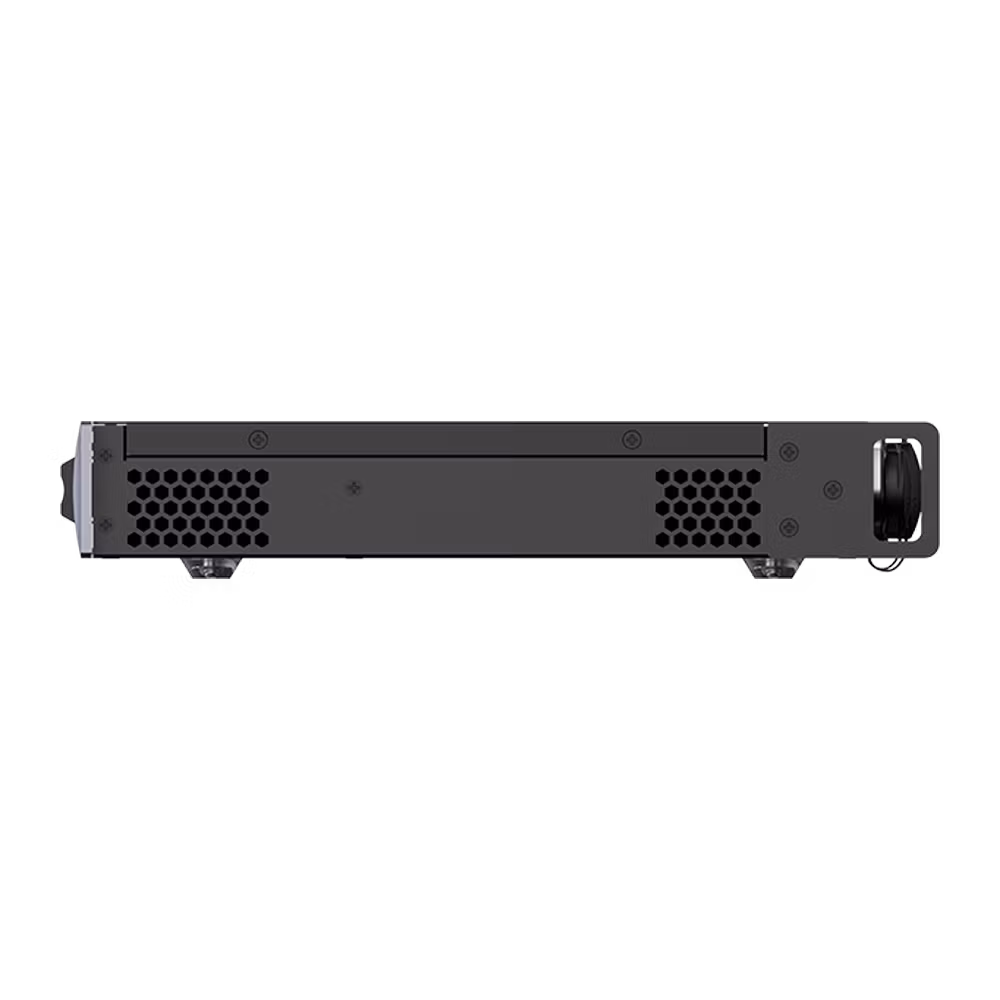

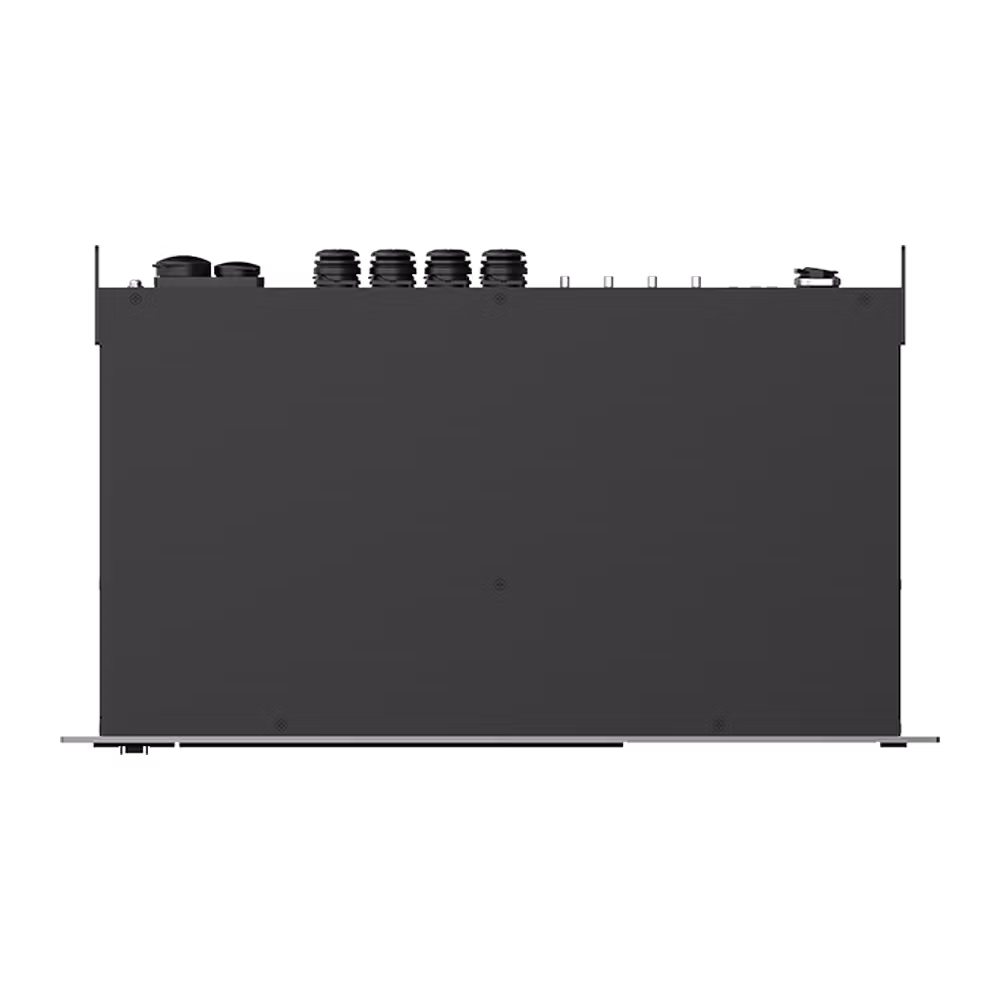

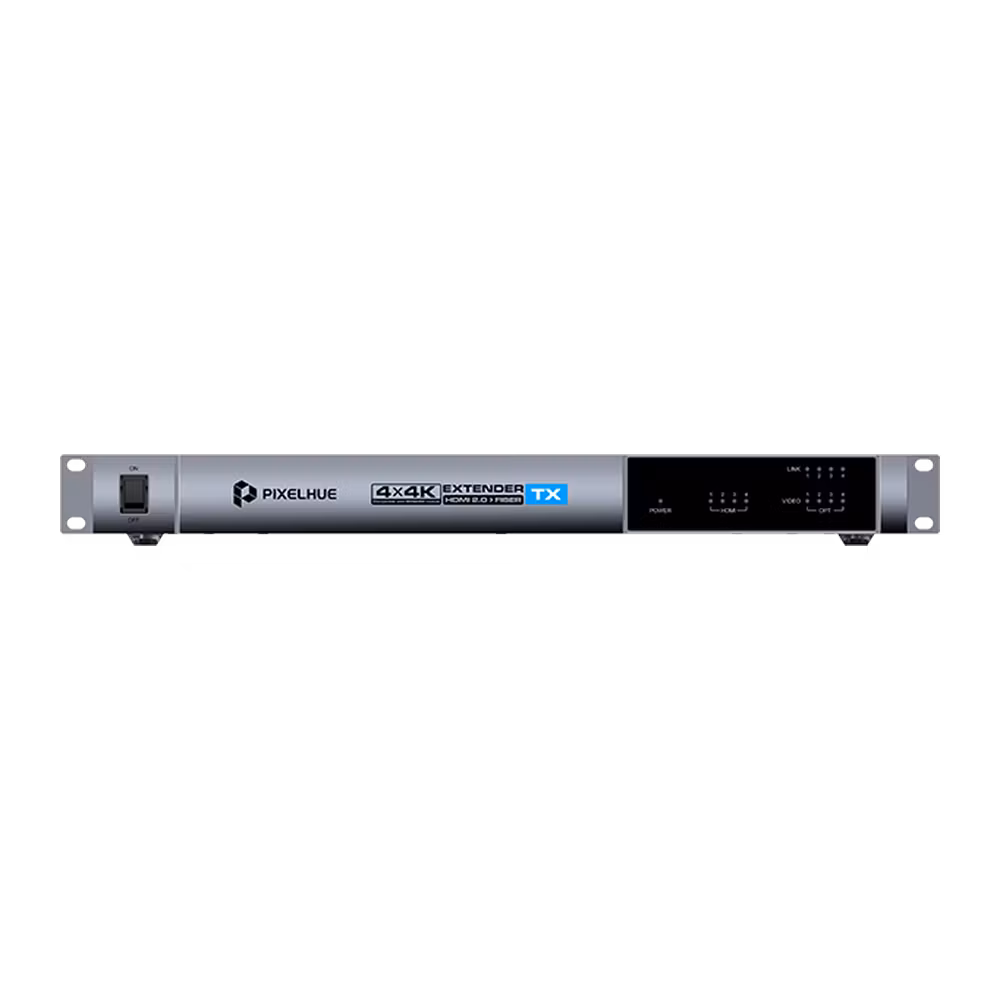

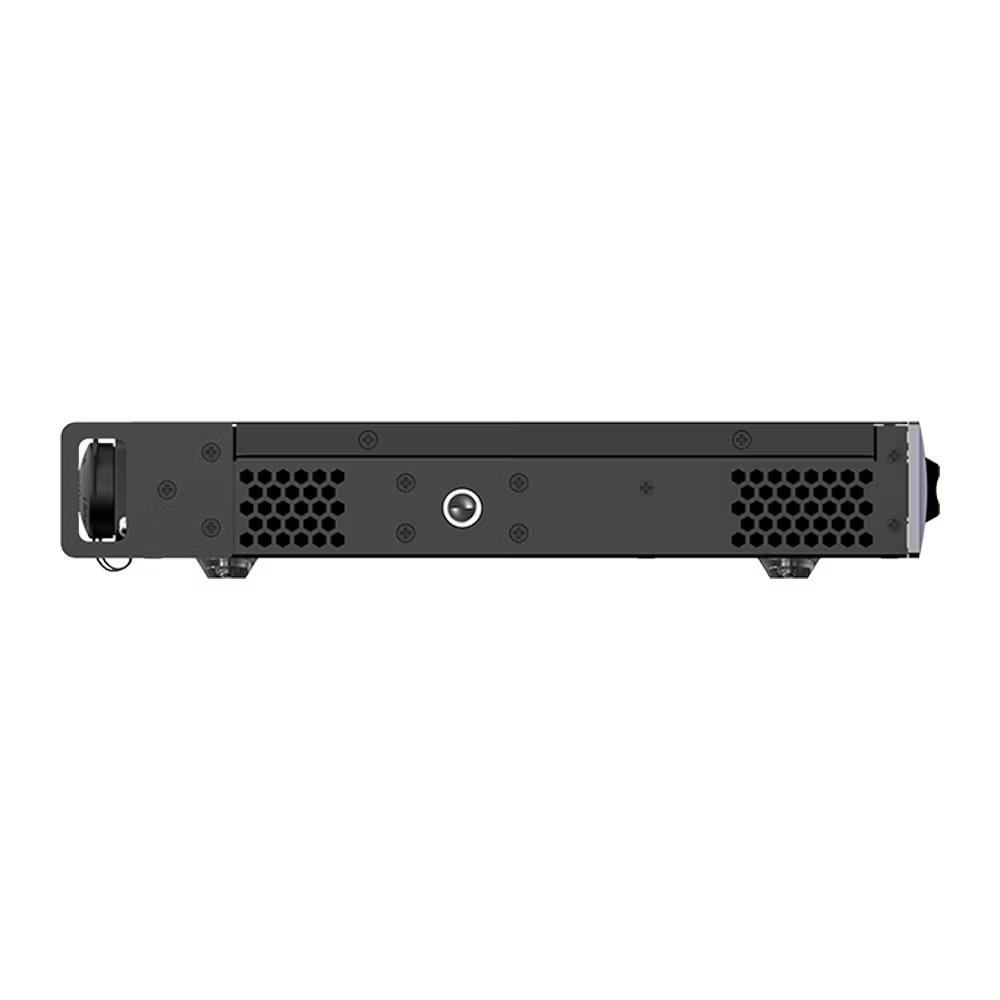

The Pixelhue EP4T/R Pro is a 1U rack-mount fiber optic extender built for touring and rental. The EP4T Pro transmitter and EP4R Pro receiver carry 4K@60Hz video and embedded audio over fiber with lossless compression, up to 12-bit with HDR, and with rugged Neutrik etherCON, opticalCON and powerCON connectors for fast, reliable setups.

Key Features

• Ultra-HD lossless transmission, 8-bit, 10-bit and 12-bit
• 8-bit 4:4:4 up to 4096×2160@60Hz (or 8192×1080@60Hz), 10-bit 4:4:4 up to 4096×2160@30Hz, 12-bit 4:2:2 up to 4096×2160@60Hz
• HDR, EDID and 3D passthrough
• Embedded audio
• Zero-latency video transmission
• KVM roaming for remote control of PCs on Windows and macOS
• Ethernet passthrough (via DIP switch)
• Input source copy function

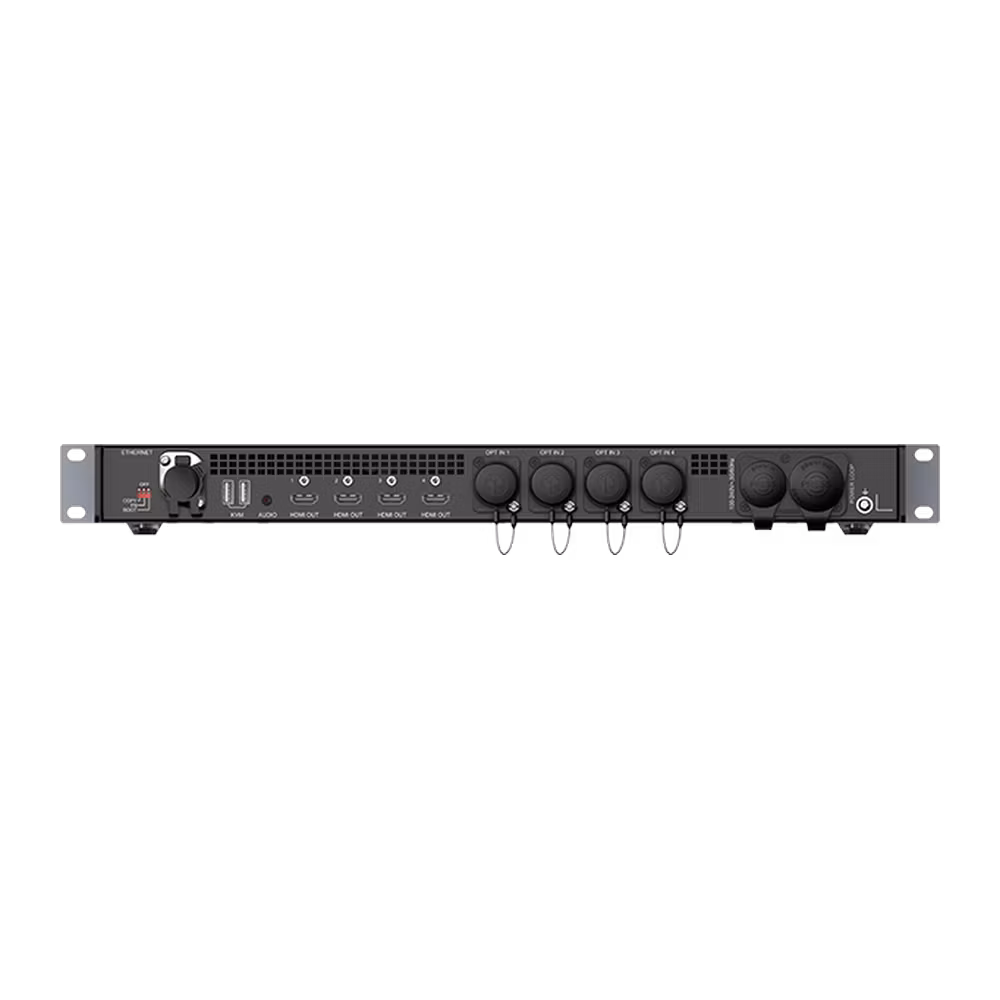

• Integrated Neutrik etherCON, opticalCON and powerCON
• HDCP-encrypted transmission
• Built for 24/7 operation

Models

• EP4T Pro-S / EP4R Pro-S: transmitter / receiver for single-mode fiber
• EP4T Pro-M / EP4R Pro-M: transmitter / receiver for multi-mode fiber

A complete link needs one EP4T Pro and one EP4R Pro of the same fiber type.

Specifications

Applications

Concerts and touring, rental and staging, broadcast, conference systems and monitoring centers. For a lighter installation version, see the EP4T/R.

Request a Quote

The EP4T/R Pro is sold on quote. Contact Pixel Pitchers for price and delivery time. We ship from Sweden by UPS Express, with no EU import duties.
