Pixelhue GogoCast WDH-41

Pixelhue GogoCast WDH-41 is a professional wireless display system designed for simple and reliable content sharing in meeting rooms, conference spaces, classrooms, and collaborative AV environments.

The WDH-41 combines the WDH-40 wireless display host with the WDA-02 wireless display adapter, allowing users to quickly share content from laptops, smartphones, and tablets to a large display. With 4K UHD output, one-button presentation, multi-user sharing, and cross-platform support, GogoCast removes the need for traditional presentation cables and adapters.

Key Features

• Complete system with WDH-40 host + WDA-02 wireless adapter
• 4K UHD wireless presentation
• HDMI output up to 3840 × 2160@60Hz
• One-button wireless presentation
• USB Type-C and USB Type-A connectivity
• Up to 4 simultaneous presenters
• Automatic split-screen layouts
• Support for Windows, macOS, Android, and iOS
• 2.4 GHz and 5 GHz Wi-Fi
• Up to 50 m wireless transmission distance
• Interactive whiteboard and annotation
• Reverse control / touchback functionality
• HDMI or 3.5 mm audio output
• PoE support for simplified installation

Simple One-Button Presentation

GogoCast is designed to make starting a presentation as quick as possible.

Connect the WDA-02 adapter to your computer and start sharing your screen with the press of a button. The adapter provides both USB Type-C and USB Type-A connections, making it compatible with a wide range of computers.

With USB Type-C, GogoCast supports wireless transmission up to 3840 × 2160@30Hz or 1920 × 1080@60Hz, with less than one second between pressing the button and displaying the content.

4K Wireless Display

The WDH-40 host provides an HDMI 2.0 output supporting up to 3840 × 2160@60Hz, making GogoCast suitable for modern 4K displays and professional meeting spaces.

Content can be shared wirelessly from computers, smartphones, and tablets while maintaining high image quality for presentations, documents, images, and video.

Multi-User Collaboration

GogoCast supports up to four simultaneous users, automatically creating a split-screen layout when multiple participants share content.

The display can be configured for:

• Single-screen presentation
• Dual-screen presentation
• Quad-screen presentation
• Split-screen or full-screen viewing

Multi-screen audio mixing is also supported, making the system suitable for collaborative meetings where several participants need to present and compare content.

Cross-Platform Wireless Sharing

In addition to the dedicated WDA-02 adapter, the GogoCast host supports wireless presentation from multiple operating systems and mainstream wireless display protocols.

Supported platforms include:

• Windows
• macOS
• Android
• iOS

This allows guests and employees to quickly share content from a wide range of devices.

Interactive Collaboration

GogoCast provides more than simple screen mirroring.

Built-in collaboration features include:

• Interactive whiteboard
• On-screen writing and annotation
• Notes
• Reverse control / touchback

When used with a compatible touchscreen, users can interact with and annotate shared PC content directly from the main display.

Flexible Installation

The compact WDH-40 host can be installed either on a wall or directly on top of a display, making it easy to integrate into permanent meeting-room installations.

Connectivity includes:

• HDMI 2.0 output
• Gigabit Ethernet
• PoE (IEEE 802.3af)
• USB Type-A
• USB Type-C
• 3.5 mm audio output

With PoE support, network connectivity and power can be provided through a single Ethernet cable when used with compatible network equipment, helping create cleaner professional installations.

Secure Wireless Presentation

For professional and corporate environments, GogoCast includes security features designed to protect presentation content.

The system supports:

• WPA-PSK / WPA2-PSK encryption
• PIN-based authorization for wireless mirroring
• Access control
• Secure wireless transmission

GogoCast can also use an existing public Wi-Fi network for mirroring, extending the effective wireless coverage in larger installations.

Ideal Applications

The Pixelhue GogoCast WDH-41 is ideal for:

• Corporate meeting rooms
• Conference rooms
• Classrooms and education
• Training facilities
• Collaboration spaces
• Interactive meeting rooms
• Boardrooms
• Hybrid working environments

What's Included

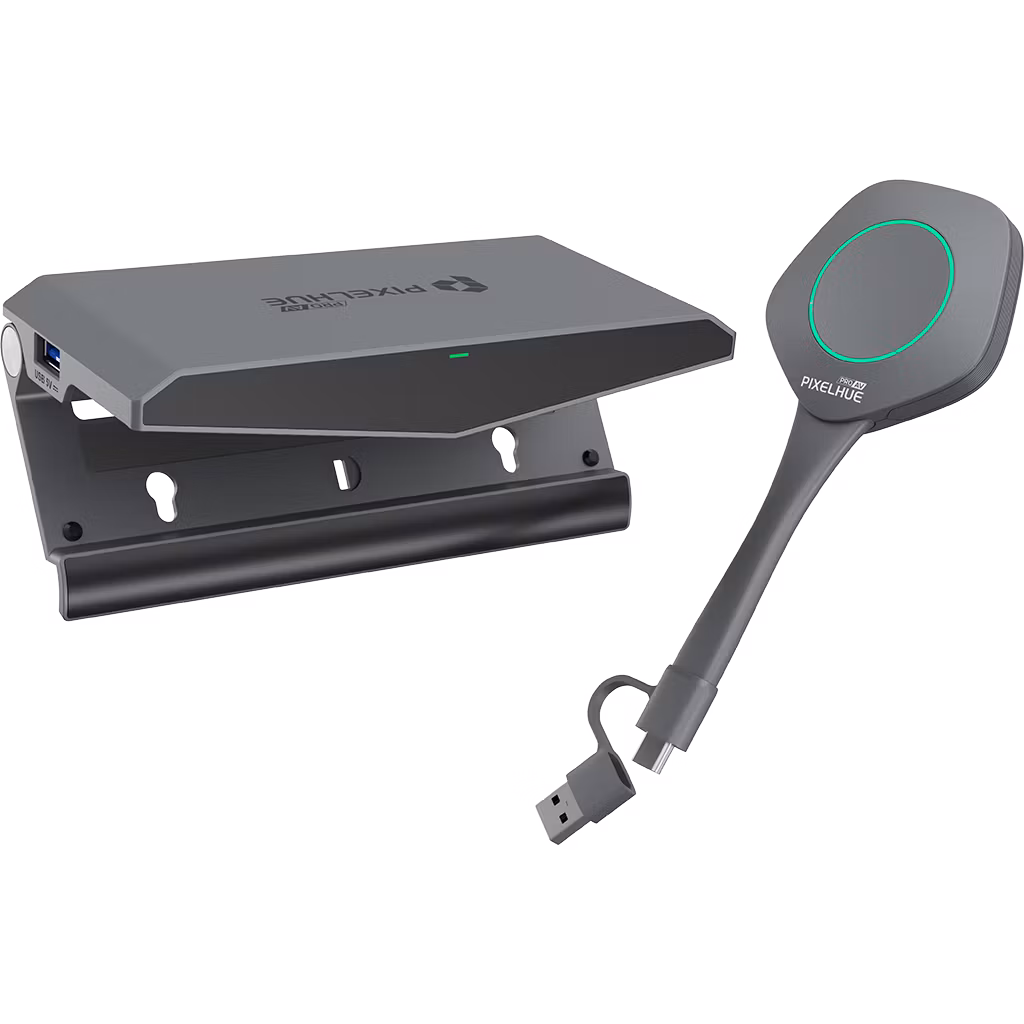

The Pixelhue GogoCast WDH-41 consists of:

• 1 × WDH-40 Wireless Display Host
• 1 × WDA-02 Wireless Display Adapter

The WDH-41 combines one-button wireless presentation, 4K output, multi-user collaboration, and interactive tools into a compact professional solution for modern meeting and presentation spaces.
