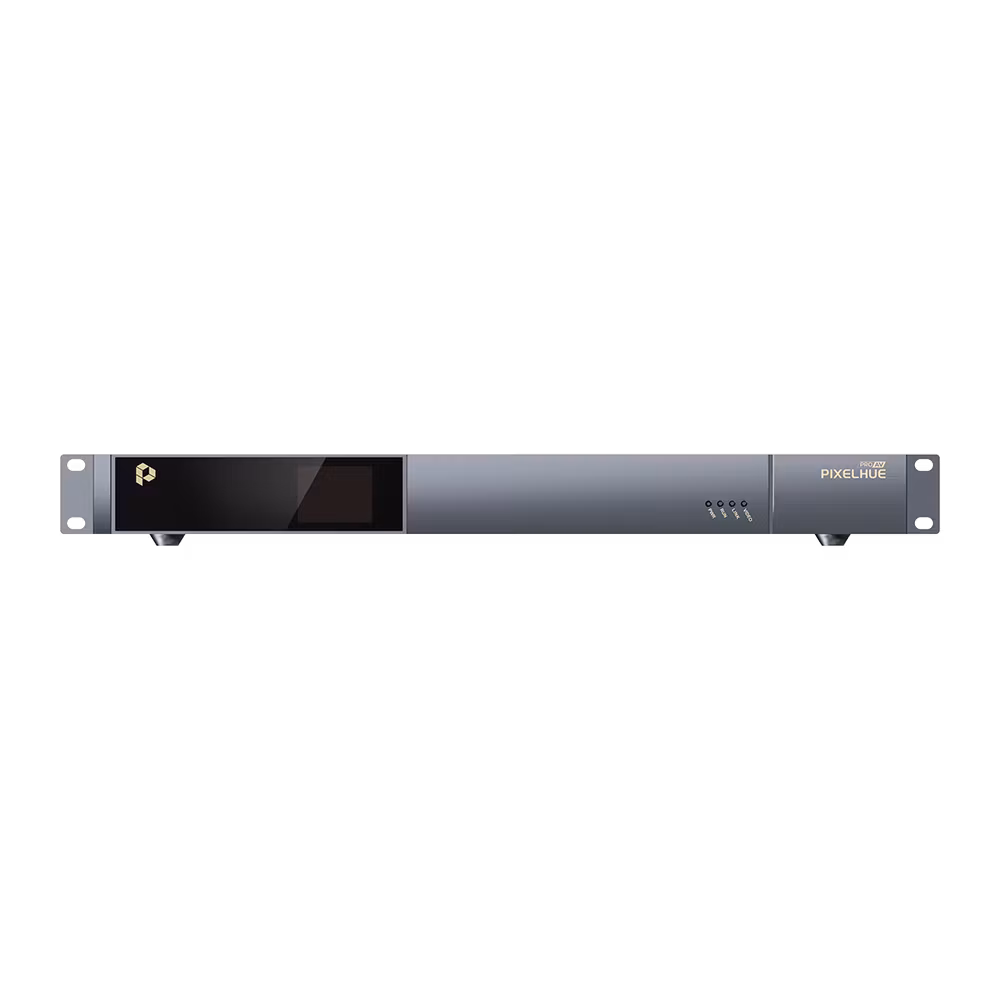

Pixelhue PD3-S20

The Pixelhue PD3-S20 is an all-in-one distributed LED controller for AV-over-IP systems. It receives video directly from the network and drives an LED wall through 20 Ethernet outputs, with a load capacity of up to 13 million pixels. No separate decoder or sending card is needed.

Like the rest of the PD3 range, it is a dual-stream device: a high-quality primary stream using Pixelhue's InstSight compression (4K@60Hz, as low as 2 ms latency) and a standard secondary stream in H.264/H.265 for multi-window layouts. It is managed in the Pixelhue AVoIP Visual Management System together with PD3-4K and PD3-2K encoders.

Key Features

• AVoIP decoder and LED controller in one unit
• 20 Ethernet outputs, up to 13 million pixels
• Primary stream: 1x 4096×2160@60Hz, latency from 2 ms (25 ms average)
• Secondary streams: up to 24x 1080p30 layers (H.265) or 16x 1080p30 (H.264), or 1x 4K + 23 HD layers
• 8/10-bit 4:4:4 RGB output
• Long-distance transmission over 1 GbE copper or 1 Gbps fiber
• Unicast and multicast, IGMP snooping, VLAN compatible
• Audio: MIC/line in, line out (AAC, G.711)
• Control: RS232, RS485, IR, I/O and relay

Applications

Command and control centers, monitoring and dispatch rooms, data centers and large conference centers where LED walls on different floors or sites share the same sources over the network.

Specifications

Need fewer outputs? See the PD3-S10 with 10 Ethernet outputs.

Request a Quote

The PD3-S20 is sold on quote. Contact Pixel Pitchers for price and delivery time. We ship from Sweden by UPS Express, with no EU import duties.
