NovaStar MX_8x5G_BASE-T output card
- 5 929 EUR
NovaStar MX 8x 5G Base-T output card: eight 5G Ethernet outputs, up to 2.95 million pixels per port and 17.7 million per card. Ships from Sweden, no EU duties.
Fast delivery from Sweden
Shipped next business day
No Import Duties
Very few exceptions
High quality with EU warranty
For the best price on the market
Fast Support
Article Number:
N-78-520-42
Supplier:
NovaStar

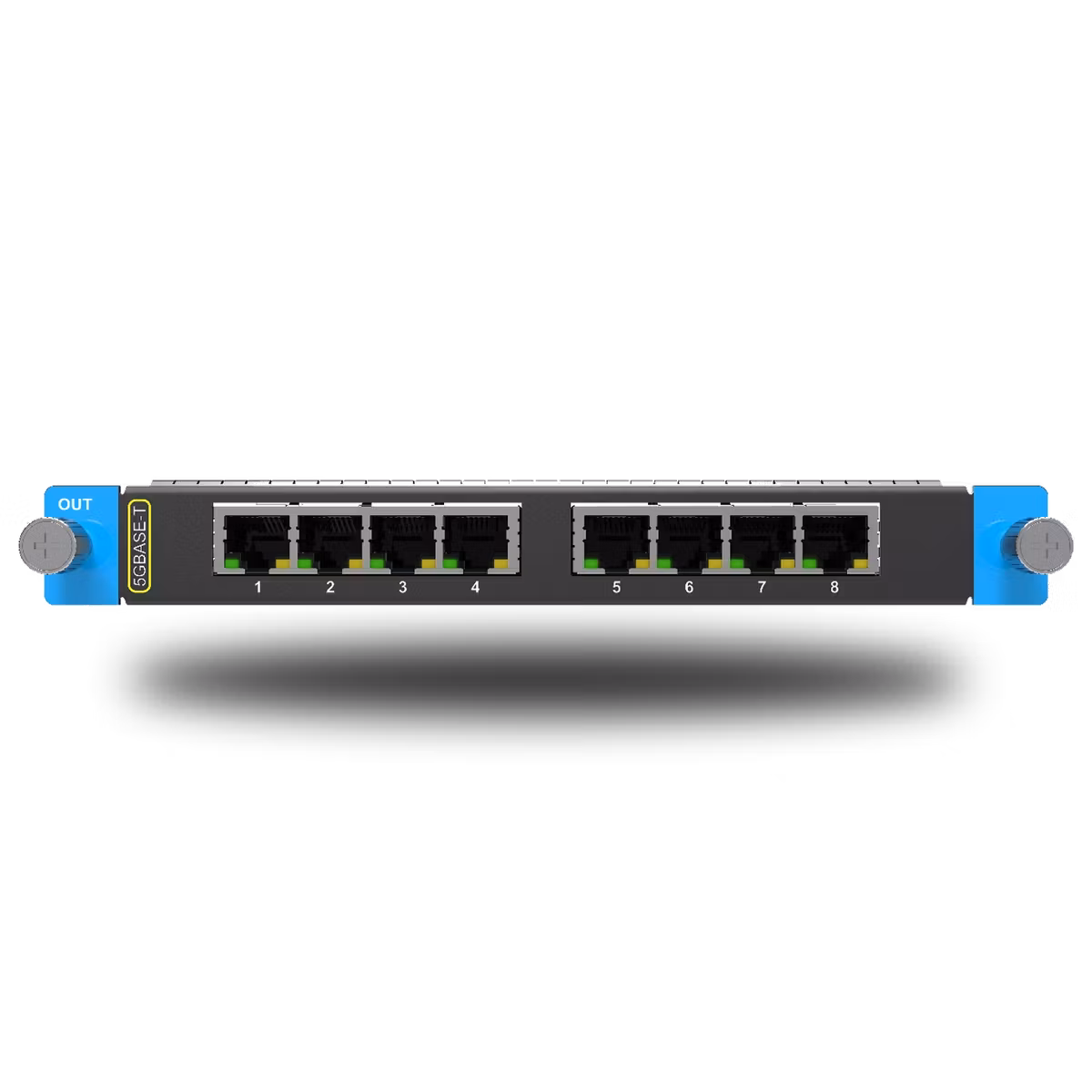

The NovaStar MX_8x 5G Base-T Output Card drives NovaStar's 5G LED system straight over copper. Each of its eight 5G Ethernet ports carries about 4.5 times the load of a classic 1G port, so large screens need far fewer cables. Use it with 5G receiving cards such as the XA50 Pro, or with CVT8-5G fiber converters for longer runs.
Key Features
- Outputs
- 8x 5G Base-T (RJ45)
- Load per 5G port
- 8-bit@60Hz: 2,951,200 pixels
- 10-bit@60Hz: 2,291,312 pixels
- 12-bit@60Hz: 1,475,600 pixels
- Load per card
- 8/10-bit@60Hz: 17,694,720 pixels
- 12-bit@60Hz: 11,804,800 pixels
- Max output width or height: 16,384 pixels
- Note
- 1G and 5G output cards cannot drive the same screen
Compatibility
Output card for the NovaStar COEX MX6000 Pro. For fiber output, see the MX_1x 40G fiber output card (same 5G load, over one QSFP+ port) or browse all NovaStar input and output cards.
