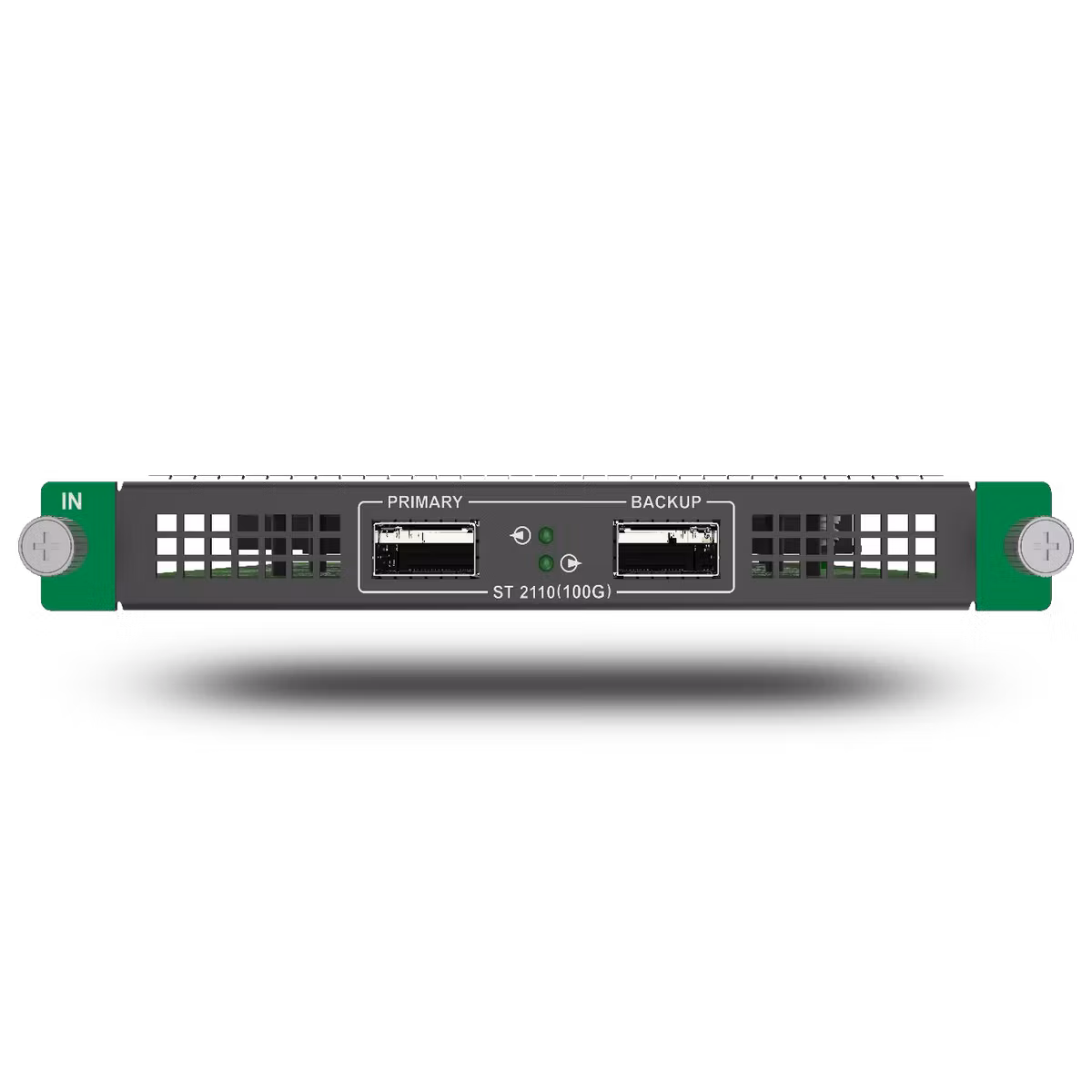

NovaStar MX_1xST 2110 (100G) input card

The NovaStar MX_1x ST 2110 (100G) Input Card brings uncompressed SMPTE ST 2110 video over a 100 GbE link into a COEX MX2000 Pro or MX6000 Pro. One card takes a single 8K@60Hz stream or four 4K@60Hz streams, with a second port for SMPTE 2022-7 backup. It suits broadcast studios and IP-based live production.

Key Features

• Ports
  • 100G Ethernet: 1 primary + 1 backup
• Standards
  • SMPTE ST 2110 (-10, -20) and SMPTE 2059 (-1, -2)
  • Backup according to SMPTE 2022-7
• Resolution
  • 1 source: max 8192×4320@60Hz
  • 4 sources: max 4096×2160@60Hz each
  • Min resolution: 800×600@60Hz
  • Max width: 8192 pixels (8192×1080@60Hz with 4 sources)
• Frame rate
  • 23.98 to 240 Hz
• Ethernet
  • 100 GbE IEEE 802.3ba (100GBASE-LR, SR, CR)
• Optical transceiver
  • Not included. QSFP28 compliant with 100GBASE-LR4 / SR4 / CWDM4
  • Validated module: Accelink 100GBASE-LR4
• Network
  • PTP (IEEE 1588-2008), NMOS IS-04 / IS-05 / IS-09, IGMPv3/v2, IPv4 DHCP or static IP
  • FEC: RS-FEC or no FEC (configure the switch to match)
  • Validated switches: Mellanox SN2010, Arista DCS-7050SX3
• VMP control
  • Streams configured by SDP file in VMP
• Audio
  • Not supported
• Cables
  • OS1/OS2 single-mode duplex fiber with LC connectors

Compatibility

Fits the input slots of the NovaStar COEX MX2000 Pro and MX6000 Pro. For 25G networks, see the MX_1x 2110 (25G) and MX_2x 2110 (25G) input cards, or browse all NovaStar input and output cards.

Downloads

• MX6000 Pro Specifications (includes all MX cards)
